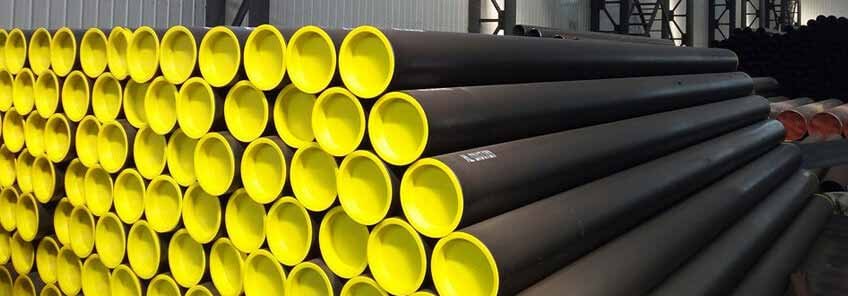

Connecting the world’s energy resources to its consumers is a feat of modern engineering. Beneath our feet and across vast landscapes lies a complex network of pipelines, the arteries of the oil and gas industry. These pipelines transport crude oil, natural gas, and refined products safely and efficiently over thousands of kilometers. The integrity of this entire global infrastructure hinges on the quality of the pipes used. In this critical role, one name stands as the undisputed benchmark for safety and reliability: the API line pipe.
But what exactly does “API” mean? What distinguishes one pipe grade from another, and where are these specialized components used? This comprehensive guide will explore the meaning, grades, and common applications of API line pipes, highlighting why they are the non-negotiable standard for energy transportation.
Decoding “API”: The Standard of Trust
The term “API” refers to the American Petroleum Institute, an organization that has been the leading standard-setting body for the global oil and natural gas industry for nearly a century. When a pipe is certified as an “API line pipe,” it signifies that it has been manufactured, tested, and inspected according to the rigorous specifications laid out by the institute.
The primary standard governing these pipes is API 5L. This detailed document outlines the precise requirements for steel pipes used in pipeline transportation systems. It covers a wide range of parameters, including:
- Chemical Composition: The exact percentage of elements like carbon, manganese, and sulfur allowed in the steel.
- Mechanical Properties: The pipe’s minimum yield strength, tensile strength, and toughness, which determine its ability to withstand pressure and stress.
- Manufacturing Methods: It provides standards for both seamless and welded pipes (ERW, LSAW, SSAW).
- Testing and Inspection: It mandates a series of stringent tests, such as hydrostatic testing and nondestructive examination, to ensure there are no defects.
In essence, the API 5L stamp is a guarantee of quality. It assures engineers, operators, and regulators that the pipe meets the high standards of safety and performance required for transporting volatile and high-pressure substances.
Understanding the Language of Grades
The API 5L specification includes numerous grades, each designed for a specific level of service and pressure. Understanding these grades is key to selecting the right pipe for the job. The grade is typically designated by a letter or an “X” followed by a two- or three-digit number. This number represents the pipe’s minimum yield strength (MYS) in thousands of pounds per square inch (psi). Yield strength is the point at which the steel begins to deform permanently under stress.
Let’s break down some of the most common grades.
Common Seamless and Lower-Pressure Grades
- API 5L Grade B: This is one of the most common and fundamental grades. It is a carbon steel pipe with a minimum yield strength of 35,000 psi. Grade B is widely used for lower-pressure applications in gathering lines and distribution networks. Its excellent weldability and moderate strength make it a versatile and cost-effective choice.
- API 5L X42: With a minimum yield strength of 42,000 psi, the X42 grade represents a step up in performance. It offers a higher strength-to-weight ratio than Grade B, allowing for slightly higher operating pressures or thinner pipe walls. It’s frequently used for transporting oil, gas, and water in pipelines that require more robustness.
High-Strength Grades for Transmission Lines
As pipeline projects become more ambitious, crossing longer distances and more challenging terrains, the demand for higher-strength materials has grown.
- API 5L X52: This is arguably one of the most popular grades for modern onshore pipelines. With a minimum yield strength of 52,000 psi, it strikes an excellent balance between strength, ductility, and toughness. This allows for the efficient transportation of natural gas and petroleum products over long distances.
- API 5L X60 and X65: These high-strength grades, with MYS of 60,000 and 65,000 psi respectively, are engineered for high-pressure transmission lines. Using a stronger steel like an api line pipe in the X65 grade allows engineers to design pipelines with thinner walls, which reduces the overall weight of the steel required, leading to lower material and transportation costs. These grades are common in major cross-country natural gas pipelines.
- API 5L X70 and Higher: Grades like X70 and X80 are considered high-performance materials used in the most demanding environments, such as deepwater offshore pipelines, arctic conditions, or seismically active areas. They offer superior strength and fracture toughness to ensure maximum safety under extreme stress.
It’s also important to note the Product Specification Level (PSL). API 5L pipes come in two levels: PSL1 is the standard quality, while PSL2 has more rigorous chemical, mechanical, and testing requirements, including mandatory toughness testing, making it suitable for more critical applications like sour service (transporting gas with high sulfur content).
Where are API Line Pipes Used?
API line pipes are utilized across the entire oil and gas value chain, from the wellhead to the final consumer.
- Upstream Operations: In the upstream sector, smaller-diameter gathering lines collect crude oil and natural gas from individual wells. These lines transport the raw product to central processing facilities or storage tanks. Grades like B and X42 are common here.
- Midstream Transportation: This is the primary application for API line pipes. The midstream sector involves the long-distance transportation of oil and gas. Large-diameter, high-strength pipes (X52, X65, X70) are used to build the transmission pipelines that form the main arteries of the energy grid, spanning entire continents.
- Downstream Distribution: In the downstream sector, after oil and gas are refined into products like gasoline, diesel, and jet fuel, API line pipes are used to transport these finished products from refineries to distribution terminals and large industrial consumers.
- Offshore Projects: Subsea pipelines that transport oil and gas from offshore platforms to onshore facilities must withstand immense external pressure from the water and resist saltwater corrosion. These critical applications demand high-grade, often heavy-wall, API 5L pipes with specialized coatings.
The Final Word
An API line pipe is far more than just a hollow steel cylinder. It is a highly engineered, rigorously tested component built to a global standard of excellence. The strict adherence to API 5L specifications ensures the safety of people and the environment, the reliability of our energy supply, and the operational efficiency of the entire oil and gas industry.
