Factors to Consider When Buying SS 316 Square Bars

Stainless steel is one of the most widely used materials in industries across the globe. Among the different grades, SS 316 Square Bars stand out due to their exceptional strength, durability, and corrosion resistance. These bars are crafted from stainless steel grade 316, an austenitic alloy known for its outstanding ability to resist corrosion in harsh environments, especially those exposed to chloride solutions and marine atmospheres.

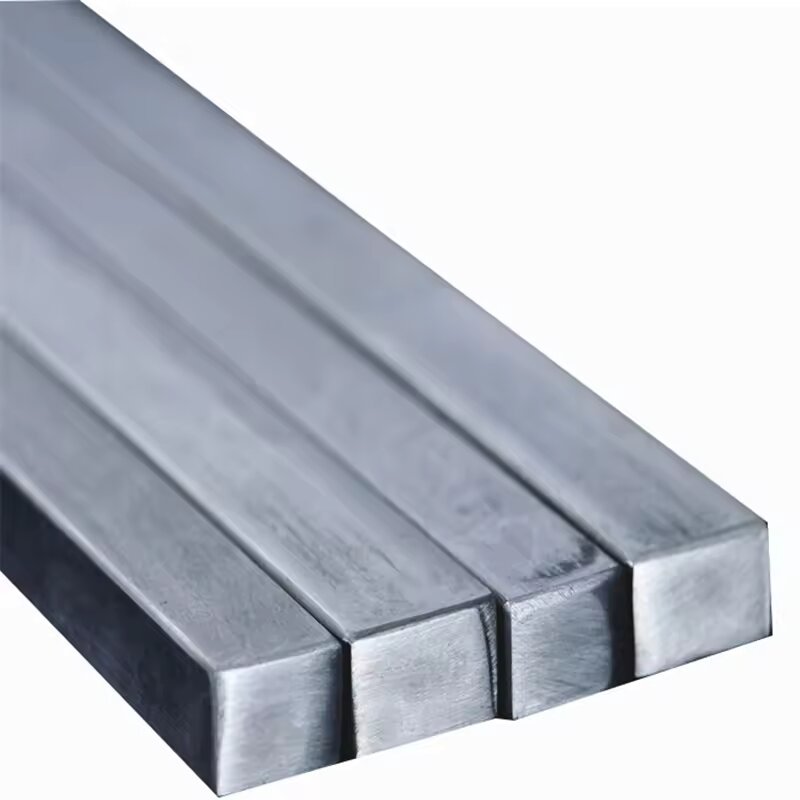

SS 316 Square Bars are produced in square cross-sections, making them suitable for structural applications, machining, and fabrication. Their uniform shape, smooth surface, and precise dimensions make them an ideal choice for industries such as construction, automotive, chemical, food processing, oil and gas, and marine engineering.

This blog explores everything you need to know about stainless steel 316 square bars, including their properties, advantages, applications, manufacturing process, and buying guide.

Composition of SS 316 Square Bars

The strength and reliability of SS 316 Square Bars come from their chemical composition. Stainless steel 316 is an austenitic chromium-nickel alloy with molybdenum, which enhances resistance to corrosion.

Typical Composition of SS 316:

• Chromium (Cr): 16–18%

• Nickel (Ni): 10–14%

• Molybdenum (Mo): 2–3%

• Carbon (C): ≤ 0.08%

• Manganese (Mn): ≤ 2%

• Silicon (Si): ≤ 0.75%

• Phosphorus (P): ≤ 0.045%

• Sulfur (S): ≤ 0.03%

• Iron (Fe): Balance

The addition of molybdenum distinguishes SS 316 from SS 304, significantly improving its pitting resistance and performance in saltwater and chloride-rich environments.

Key Properties of SS 316 Square Bars

SS 316 Square Bars are known for their exceptional physical, mechanical, and corrosion-resistant properties.

1. Mechanical Properties

• Tensile Strength: 515 MPa minimum

• Yield Strength: 205 MPa minimum

• Elongation: 40%

• Hardness: 217 Brinell (maximum)

2. Physical Properties

• Density: 8.0 g/cm³

• Melting Point: 1371–1399 °C

• Modulus of Elasticity: 193 GPa

• Thermal Conductivity: 16.3 W/m·K at 100 °C

3. Corrosion Resistance

• High resistance to corrosion in acidic, alkaline, and chloride environments

• Superior performance in marine applications compared to SS 304

• Excellent resistance to crevice corrosion and stress corrosion cracking

4. Machinability and Weldability

• Easily machinable with standard tools

• Good weldability using TIG, MIG, or other conventional welding processes

• Retains strength and toughness even after welding

Advantages of SS 316 Square Bars

SS 316 Square Bars provide a range of benefits that make them suitable for demanding applications:

1. Superior Corrosion Resistance – Excellent resistance to chlorides, acids, and seawater environments.

2. Durability – Long service life due to its strength and resistance to wear.

3. Hygienic Properties – Preferred in food and pharmaceutical industries as it resists bacterial growth.

4. High Strength – Withstands heavy loads and high-pressure conditions.

5. Heat Resistance – Performs well at high temperatures without losing toughness.

6. Versatility – Suitable for construction, chemical, automotive, and marine industries.

7. Aesthetic Appeal – Smooth finish and uniform square shape make it ideal for architectural use.

Applications of SS 316 Square Bars

The versatility of SS 316 Square Bars ensures their use across multiple industries.

1. Construction Industry

• Structural frameworks

• Reinforcement in buildings and bridges

• Railings and architectural designs

2. Marine Industry

• Shipbuilding

• Offshore oil rigs

• Marine hardware exposed to saltwater

3. Chemical and Petrochemical Industry

• Storage tanks for chemicals

• Heat exchangers and pressure vessels

• Equipment exposed to acidic and alkaline conditions

4. Food and Beverage Industry

• Processing equipment

• Conveyors and supports

• Dairy and brewery machinery

5. Automotive and Aerospace Industry

• Shafts, fasteners, and components

• Exhaust systems

• High-performance machinery

6. Medical Industry

• Surgical instruments

• Medical support equipment

• Orthopedic implants

Manufacturing Process of SS 316 Square Bars

The production of stainless steel 316 square bars involves several stages:

1. Raw Material Selection – High-quality stainless steel 316 alloy is sourced.

2. Melting and Casting – Raw materials are melted in an electric arc furnace and cast into billets.

3. Hot Rolling – Billets are heated and rolled into square shapes of desired dimensions.

4. Heat Treatment – Bars undergo annealing to enhance mechanical strength and corrosion resistance.

5. Cold Finishing – Surface treatment such as pickling or polishing ensures a smooth finish.

6. Inspection and Testing – Bars are tested for mechanical properties, dimensions, and surface defects.

7. Cutting and Packaging – Finished bars are cut to specific lengths and packed for distribution.

Surface Finishes of SS 316 Square Bars

SS 316 Square Bars are available in different surface finishes to suit various applications:

• Bright Finish – Smooth and shiny surface, suitable for decorative purposes.

• Black Finish – As-rolled condition with a dark appearance.

• Polished Finish – Mirror-like surface for aesthetic and hygienic applications.

• Pickled Finish – Acid-treated surface for improved corrosion resistance.

SS 316 Square Bar Standards and Specifications

SS 316 Square Bars are manufactured according to international standards, ensuring quality and consistency.

• ASTM Standards: ASTM A276, ASTM A479

• ASME Standards: ASME SA276, ASME SA479

• DIN Standards: DIN 1.4401 / 1.4436

• JIS Standards: SUS 316

Available sizes typically range from 4 mm to 150 mm in square cross-sections, with lengths up to 6 meters or customized as per requirement.

SS 316 vs SS 304 Square Bars

Factors to Consider When Buying SS 316 Square Bars

1. Dimensions and Tolerance – Ensure size and length meet your project requirements.

2. Surface Finish – Select finish based on application (e.g., polished for hygiene).

3. Certifications – Look for ASTM/ASME/DIN/JIS standards compliance.

4. Supplier Reputation – Choose a reliable SS 316 square bar manufacturer or supplier.

5. Price and Availability – Compare rates and availability in bulk quantities.

6. Testing Reports – Ensure bars come with mill test certificates (MTC).

SS 316 Square Bar Price in India

The SS 316 Square Bar price varies depending on size, finish, and supplier. On average:

• Small sizes: ₹250 – ₹300 per kg

• Medium sizes: ₹280 – ₹350 per kg

• Large sizes: ₹300 – ₹400 per kg

Prices fluctuate depending on market conditions, raw material costs, and demand. Buyers should request a quotation from trusted suppliers for accurate rates.

Maintenance Tips for SS 316 Square Bars

To extend the service life of SS 316 Square Bars:

• Clean surfaces regularly to avoid buildup of dirt and chemicals.

• Avoid contact with strong acids and alkalis when unnecessary.

• Store in dry conditions to minimize risk of rust from contamination.

• Use passivation treatments for critical applications.

Conclusion

SS 316 Square Bars are a versatile and reliable material choice for industries requiring strength, durability, and corrosion resistance. With their superior resistance to chlorides, acids, and high-temperature conditions, they outperform many other stainless steel grades, especially in marine and chemical applications.

Available in a range of sizes, finishes, and standards, SS 316 Square Bars serve industries from construction to medical. Choosing the right supplier ensures consistent quality, competitive pricing, and timely delivery. Whether used in structural frameworks, marine components, or food processing machinery, stainless steel 316 square bars offer unmatched performance and longevity.
